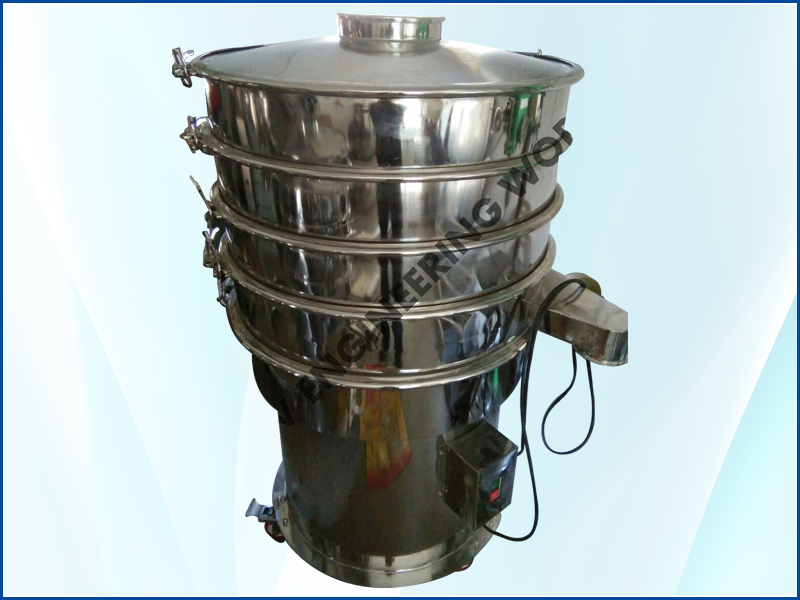

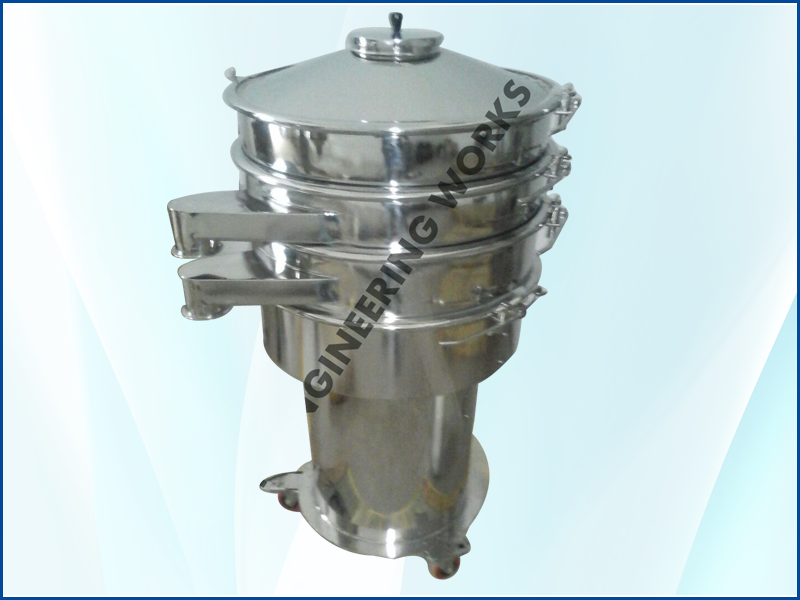

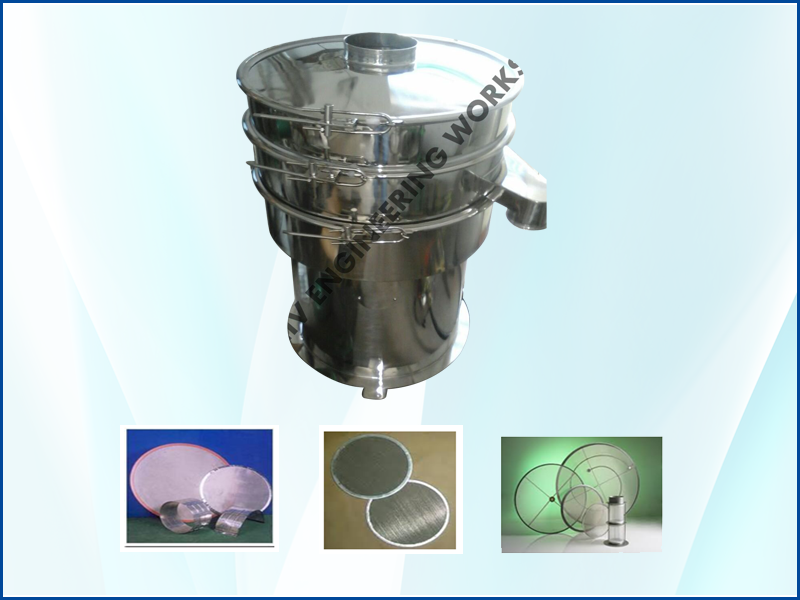

VIBRO SHIFTER

Discription

We are manufacturing the all type of   “Vibro-Shifter” in Standard & GMP Model accordingly customer requirement, below is “Vibro-Shifter” technical Specifications.

MODEL NO. SME-VB-12’’ SME-VB-24’’ SME-VB-30’’ SME-VB-36’’ SME-VB-48’’
Screens SS 304 (SS 316 Optional) SS 304 (SS 316 Optional) SS 304 (SS 316 Optional) SS 304 (SS 316 Optional) SS 304 (SS 316 Optional)
Screen Dia. 300 mm. 600 mm. 750 mm. 900 mm. 1220 mm.
Capacity/Hour * 20 To 100 Kg. 30 To 200 Kg. 30 to 300 Kg. 30 to 325 Kg. 40 to 410 Kg.
Charging height 650mm with Lid 900+ 5 mm with Lid 950+ 5 mm with Lid 950+ 5 mm with Lid 950+ 5 mm with Lid
Discharging height 400 + 5 mm 650 + 10 mm. 750 + 5 mm. 750 + 5 mm. 700 + 5 mm.
Electric Motor 0.25 HP / 1440 rpm/ 3 Ph. 0.5 HP / 1440 RPM / 3 Ph. 0.5 HP / 1440 RPM / 3 Ph 0.5 HP / 1440 RPM / 3 Ph. 1.5 HP /1440 RPM 3 Ph.
