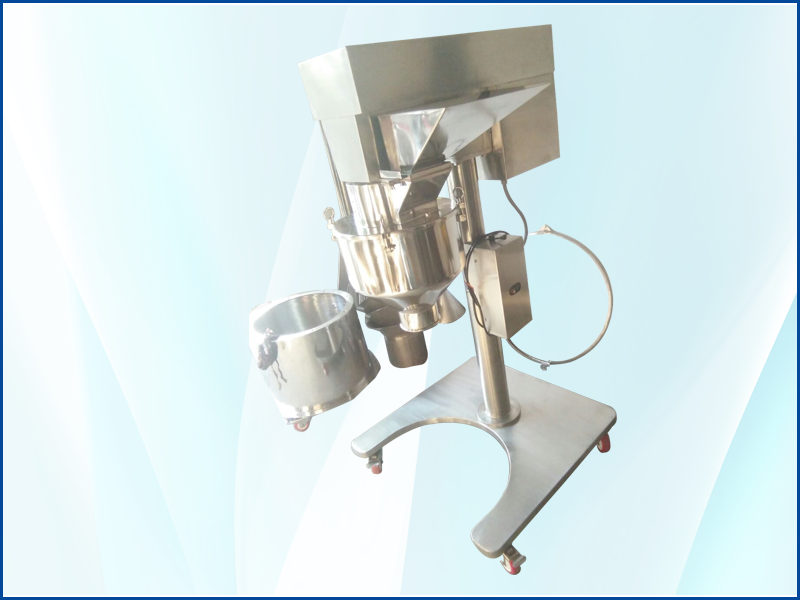

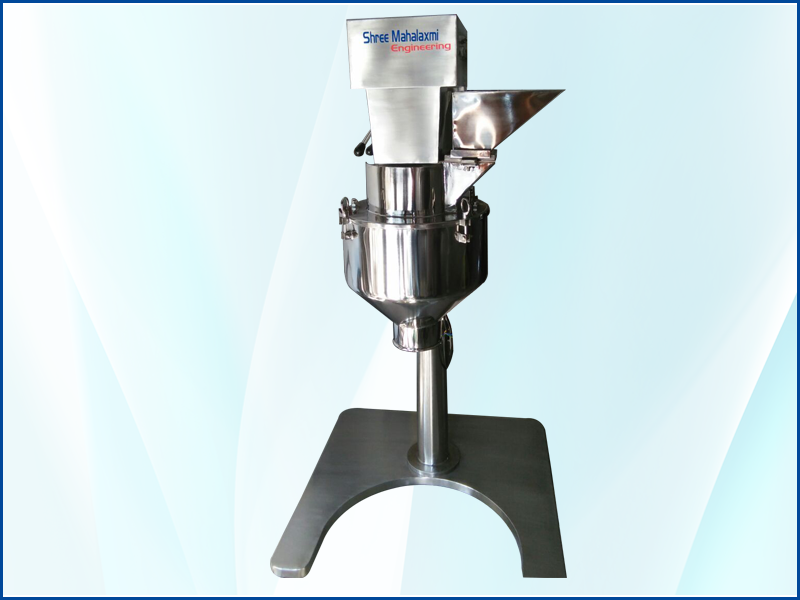

MULTI MILL
Discription
MODEL NO. | SME-MM-250 |
Output * | 50 to 200 Kg./Hr. |

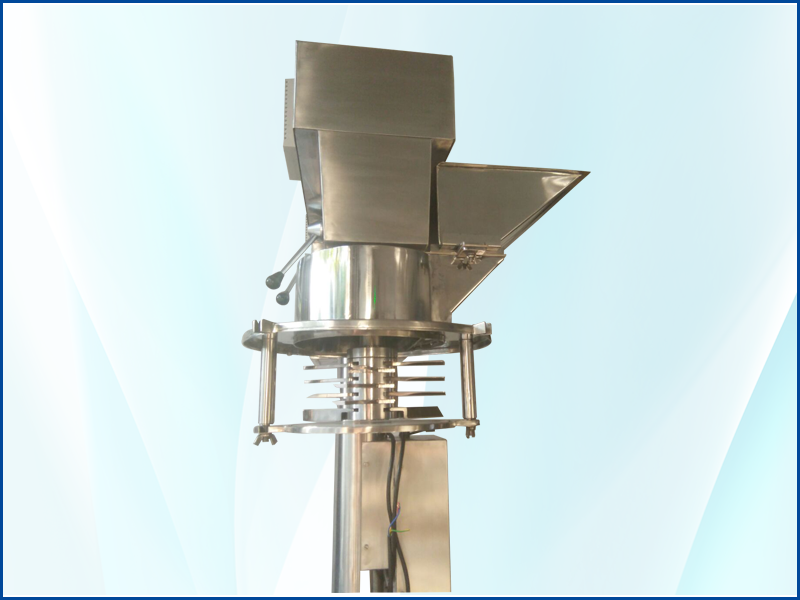

Rotor Assembly Diameter | 250 mm. Approx. |
Rotor Speed | 750 / 1500 / 2300 / 3000 RPM |
Beaters | 12 Nos. with knife and impact edges and 2 Nos. scraper blades |

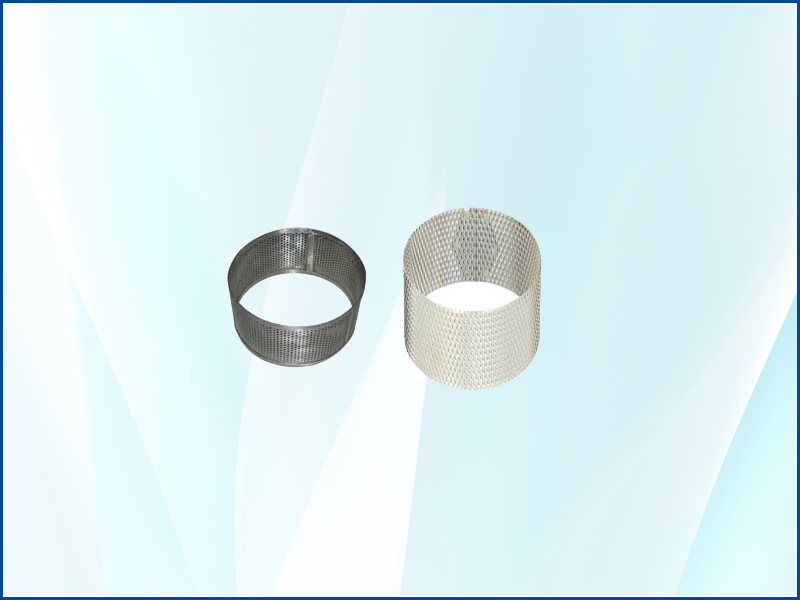

Screen dimension | Inner Diameter 265 mm./ Height 140 mm |
Motor | 3 HP. / 1440 RPM |
Starter | “DOL” with reversible switch |
Material charging height | 1510 + 5 mm. |
Material discharging height | 790 + 5 mm. |
