Discription

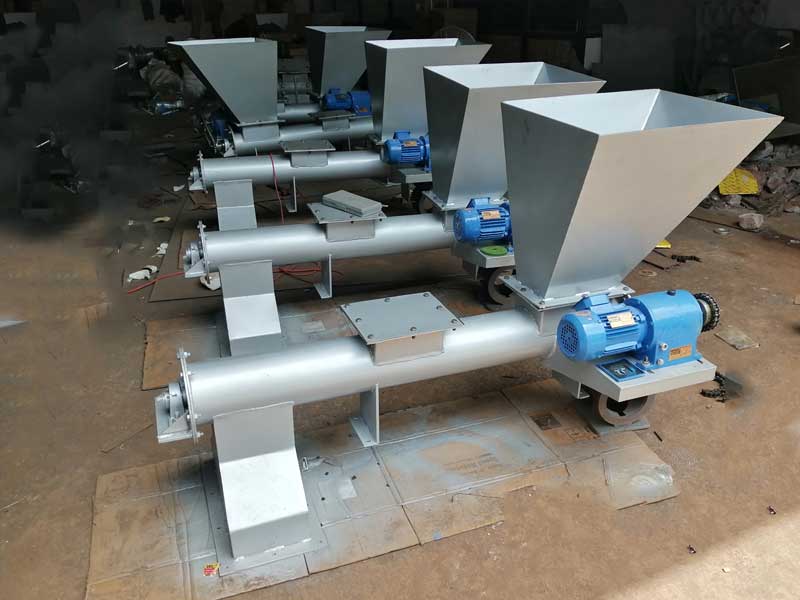

Shiv Engineering Work’s tubular screw conveyor is bulk material handling equipment, which usually consists of a tube containing either a spiral blade coiled around a shaft (sometimes called an auger), driven at one end and held at the other. The main parts include tube, shaft with spiral blades, inlet and outlet chutes, as well as driving device.
The closed pipe-type screw conveyor is a pipe with a shaft inside with welded screw blades and passive bearing. The screw’s blades have different pitch which depends on the type of the transported raw material and the planned capacity. This type of conveyor is closed, which means that the screw cannot be accessed directly. Due to the closed structure, the transported raw material does not spill outside the machine during transport.

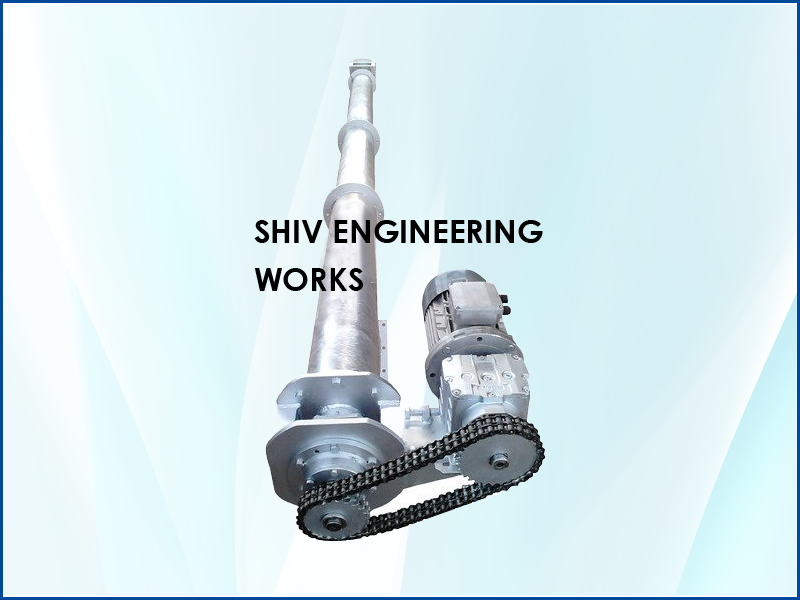

    The machine can be equipped with a pull screw. In this version, the drive unit is located in the direction of the raw material feeding. Some screw conveyors are equipped with push screws with gear motor installed on the feeding side. The screw conveyor is fitted with an initial or end bearing. Depending on the type of transported raw material, slide or bearing rests are installed.
